AKH-0.66-K电流互感器

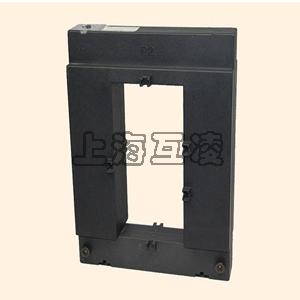

  • AKH-0.66-K电流互感器

    • 名称:AKH-0.66-K电流互感器
    • 型号:AKH-0.66-K
    • 销售热线:021-31263351
    • QQ在线客服:919107474
    • 公司承诺:上海互特电气有限公司成立以来始终以用户需求为目标,以科技为先导,所提供的产品一直以一流的品质和优秀的售后服务而享。我们将为您提供优质的产品与服务。
产品描述

AKH-0.66-K电流互感器

替代型号HLK-0.66-K

Type Ratio(A) Burden(VA)
Class:0.5 Class:1.0
HLK-0.66 1000/5 5 10
HLK-816 1500/5 7.5 10
HLK-816 2000/5 10 15
HLK-816 2500/5 15 20
HLK-816 3000/5 20 25
HLK-816 4000/5 20 25
HLK-816 5000/5 20 25
HLK-816 6000/5 20 25

细节图

akh-0.66-K 细节图纸

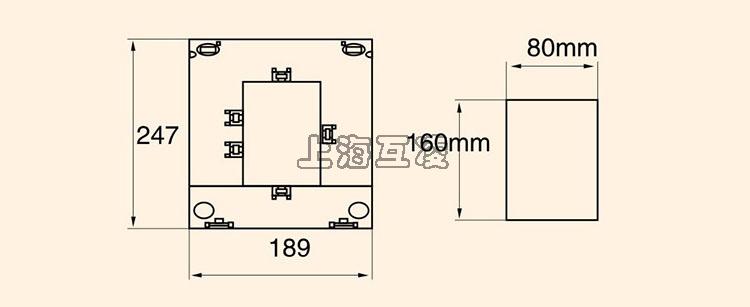

安装尺寸图 及内径图

配件图

DESCRIPTION
The DP series current transformer has been specially designed to facilitate their installation in
newor already existing net works. They may be installed without opening any cable or bus-bar
circuit.The connection of conventional CTs usually requires the interruption of the primary side
current to pass cables or bus-bar through the transformer core to connect such cables to the
primary terminals.
DP系列分离式互感器是为了方便安装的电路系统或电网改造系统中安装而特殊设计的,它可在不断
开电缆或者汇流排的情况下进行安装,即节省了安装时间又节约维护费用。

FEATURE
Two built in fixing methods:Base/Busbar
两种安装方式:底线/汇流排
Very easy to install
筒易安装
Wide inner window, allowing clamping of big cables or bus-bars
内子径宽,允许宽电缆线和汇流排的通过
Wide range of sizes to accommodate all the existing installation
尺寸满足多样安装
Primary current from 5A t0 5000A
额定一次电流从5A到5000A

SPECIFICATIONS

Rated Frequency(额定频率)
Rated Test Voltage(耐受电压)
Rated short-time thermal current(lth)(额定热电流)
Rated dynamic curren t (ldyn)(动稳定电流)
Rated voltaae (Um)(额定电压)
Contin uou s -ove rload (过载)
Operating temperature(工作温度范围)
Housing self-extinguishing class(外壳阻燃等级)
Safety factor(准确限制系数)
Secondary current(二次电流)
50/60Hz
3kv AC.(1min)
60ln
2.5lth
0.72Kv AC.
1.2ln
-10℃~50℃
VO
FS5
5A/1A



STANDARD
IEC60044-1 GB1208-2006


产品名称:AKH-0.66-K电流互感器

型号:AKH-0.66-K

声明:本页AKH-0.66-K电流互感器的接线图、外形尺寸及文字等信息仅供参考用,如有改动不另行通知。订购前请来电咨询,我们有专业人士为您选型。 另外可根据客户要求,订制非标产品,欢迎来电订购,电话021-31263351。
